256GB 3D NAND SATA 2.5-inch SSD

Description

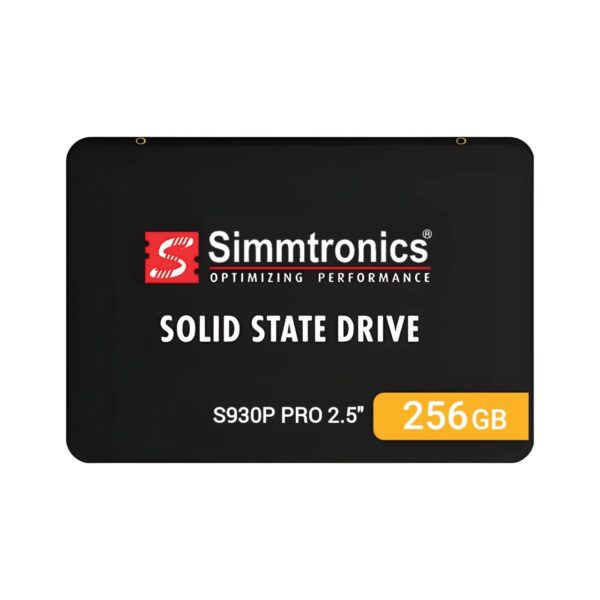

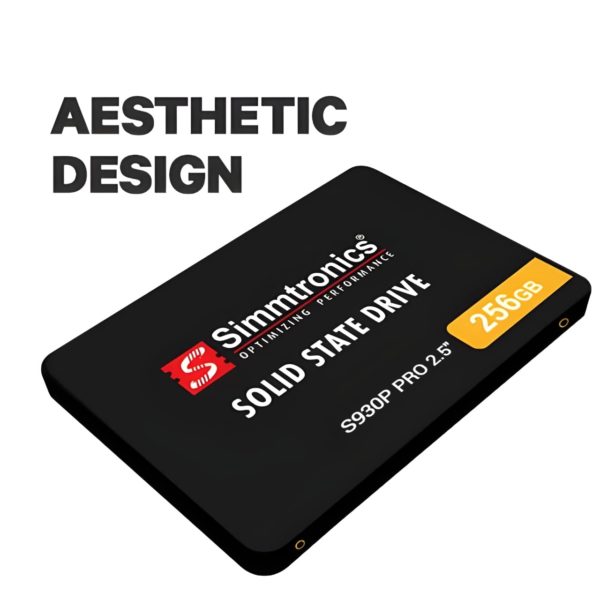

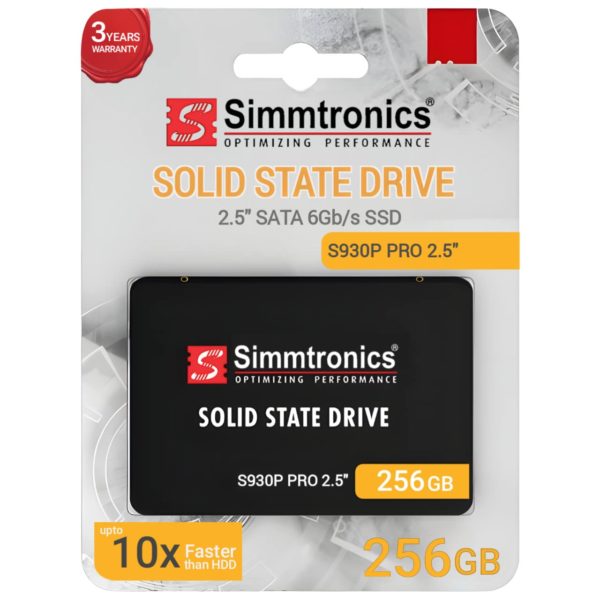

Simmtronics S930P PRO 2.5″ SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with Serial ATA I/II/III interface, including being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the standard 7-pin interface for data segment and 15-pin for power segment, as well as operating at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 1TB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on 16CE and Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0).

Error Correction Code(ECC)

Simmtronics S930P PRO 2.5″ SATA applies the LDPC (Low Density Parity Check) of ECC algorithm, which can detect and correct errors that occur during read processto ensure data been read correctly.

Static and Dynamic Wear Leveling

Wear Leveling is applied to extend the lifespan of NAND flash by evenly distributing write and erase cycles across the media.

Bad Block Management

Simmtronics implements an efficient bad block management algorithm to detect the factory-produced bad blocks and manages any bad blocks that appear with use.

SmartZIP

Built-in compression technique of Simmtronics SSD that helps to improve write efficiency and the SSD.

Secure Erase

Secure Erase is a standard ATA command and will write all “0xFF” to fully wipe all the data on SSD. default settings.
